Dovetail Fixtures

Datum Workholding Dovetail Fixtures deliver rigid and reliable clamping for demanding 4th and 5th axis CNC machining. The small footprint maximises access to 5 sides of a part while the small clamping depth minimises material removal needed in secondary operations.

Learn More
  • 30mm Stainless steel CNC dovetail vice fixture used in 4 and 5 axis CNC machining workholding

    DF-30 Dovetail Vice Fixture - 35x30x27mm

    The Datum Workholding DF-30 Dovetail Fixture delivers rigid and reliable clamping for demanding 4th and 5th axis CNC...
    £174.95 ex.VAT

    £174.95 ex.VAT

  • 40mm Stainless steel CNC dovetail vice fixture used in 4 and 5 axis CNC machining workholding

    DF-40 Dovetail Vice Fixture - 40x40x34mm

    The Datum Workholding DF-40 Dovetail Fixture delivers rigid and reliable clamping for demanding 4th and 5th axis CNC...
    £194.95 ex.VAT

    £194.95 ex.VAT

  • 50mm Stainless steel CNC dovetail vice fixture used in 4 and 5 axis CNC machining workholding

    DF-50 Dovetail Vice Fixture - 50x50x34mm

    The Datum Workholding DF-50 Dovetail Fixture delivers rigid and reliable clamping for demanding 4th and 5th axis CNC...
    £224.95 ex.VAT

    £224.95 ex.VAT

More Info

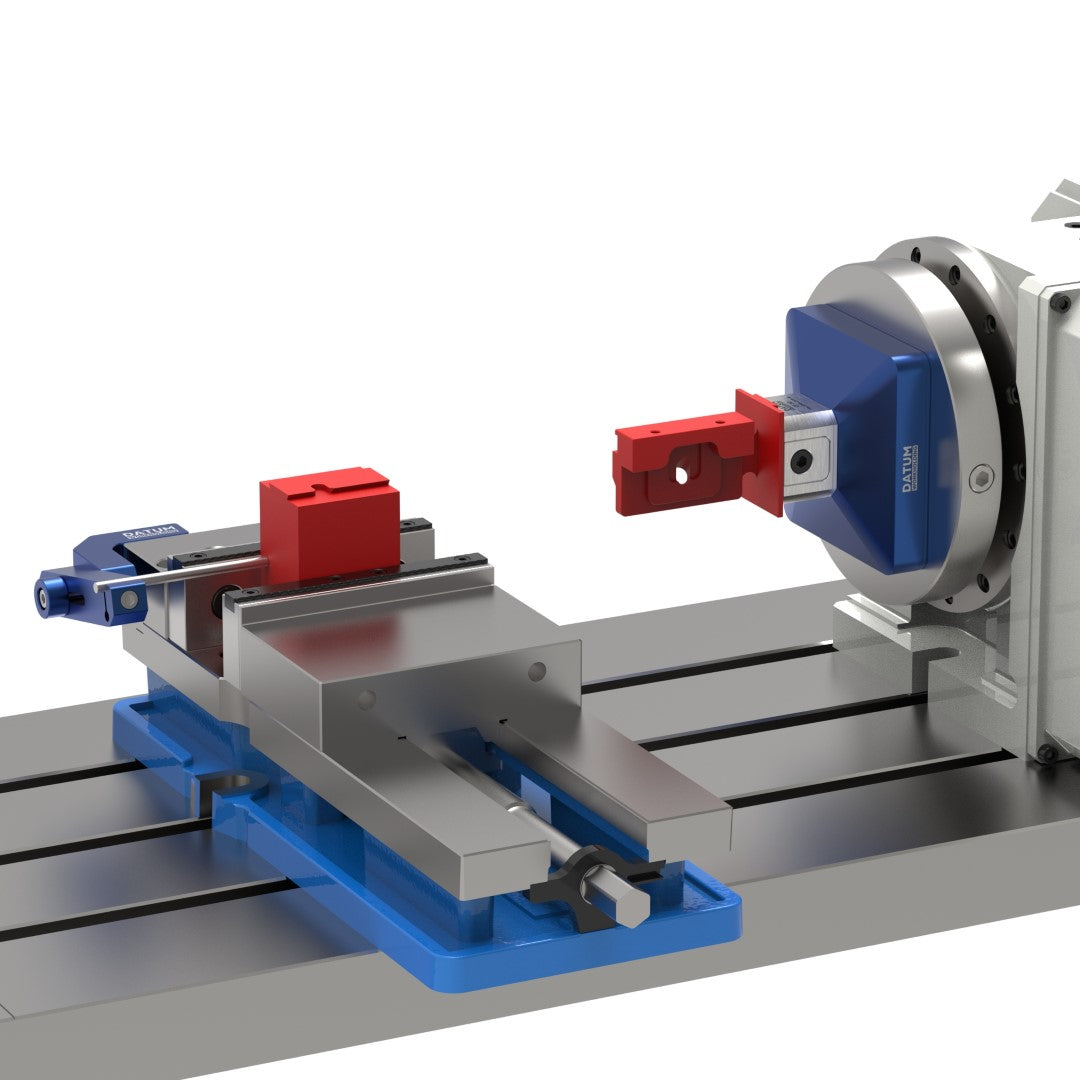

OP1 and OP2 machining of a part in a dovetail fixture vice featuring a 4th axis rotary table and stationary 6" machine vice

Multi-Axis 4/5

Optimised for 4 and 5-axis CNC mills, the elevated design of our dovetail fixtures provide excellent and predictable tool/tool holder clearance.

Utilise a single 3 axis vice for stock preparation and 4th or 5th axis rotary table for a streamlined workflow, allowing for complex parts to be machined complete
each cycle.

Dovetail fixture vice on an aluminium riser block compatible with 52 and 96mm zero point workholding

Zero Point Ready

Optional riser plates are fully compatible with standard 52mm and 96mm zero-point systems, enabling seamless integration of dovetail work holding into existing setups.

Achieve fast changeovers, accurate location, and repeatable positioning of setups across multiple machines and pallets.

DF50 CNC dovetail fixture vice holding a finished machined part on a zero point compatible riser block

One and Done

Clamping on just 3mm of stock provides exceptional access to the part from 5 sides. Leaving a breakaway table allows for parts to be machined in 1 single operation, ideal for tight tolerances and geometries difficult to fixture.

Alternatively, dovetail fixtures can reduce the amount of material needing to be removed in OP2 machining, an ideal solution to for materials with high internal stresses that are prone to distortion. Material wastage is minimised when using dovetail fixtures, reducing costs and improving machining efficiency.

  • Example of stock material with dovetail and slot mounted in a CNC dovetail vice fixture aligned with a stop pin

    Repeatable

    The integrated offset stop pin ensures material is located repeatably and in the correct orientation

  • Wheel chart of compatible materials with datum workholding dovetail fixture

    Material

    Dovetail fixtures are also highly effective when machining hardened steels, graphite and fragile materials that conventional gripper jaws struggle to hold securely


  • Example of stock material with dovetail and slot prepared to be mounting in a CNC dovetail vice fixture

    Simple Stock Preparation

    Prepare stock material with a dovetail is a quick and simple machining operation requiring only a few standard tools
