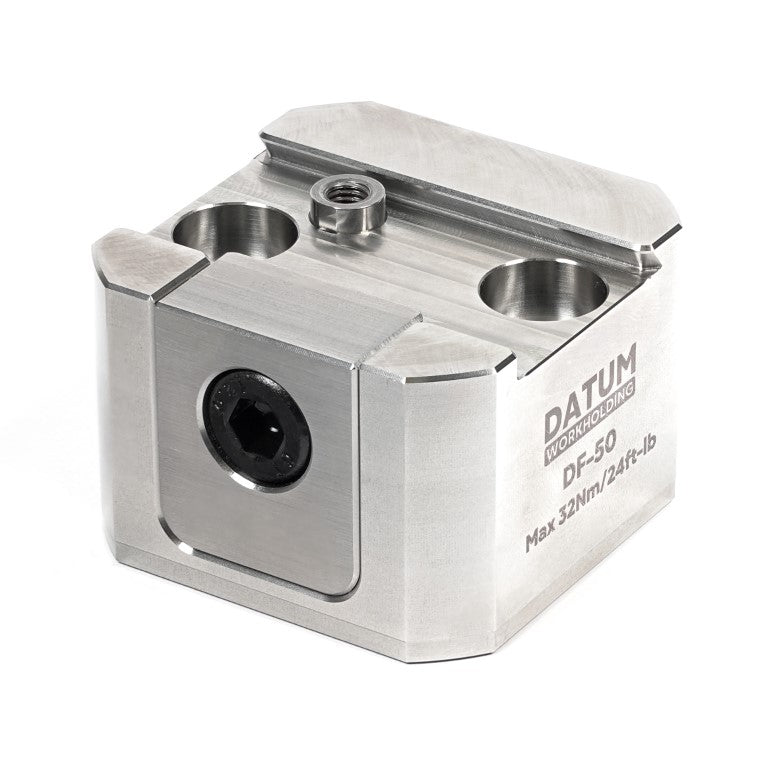

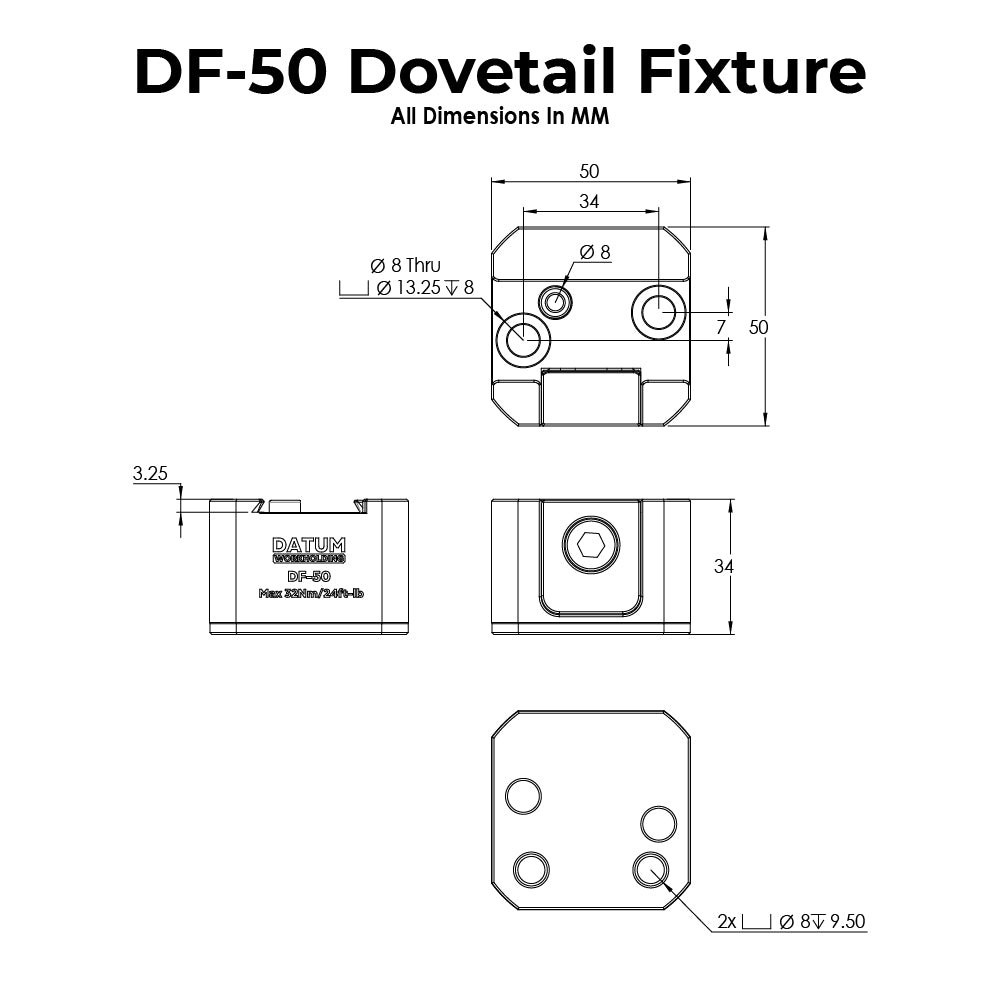

DF-50 Dovetail Fixture
SKU:DF-50
In stock
Couldn't load pickup availability

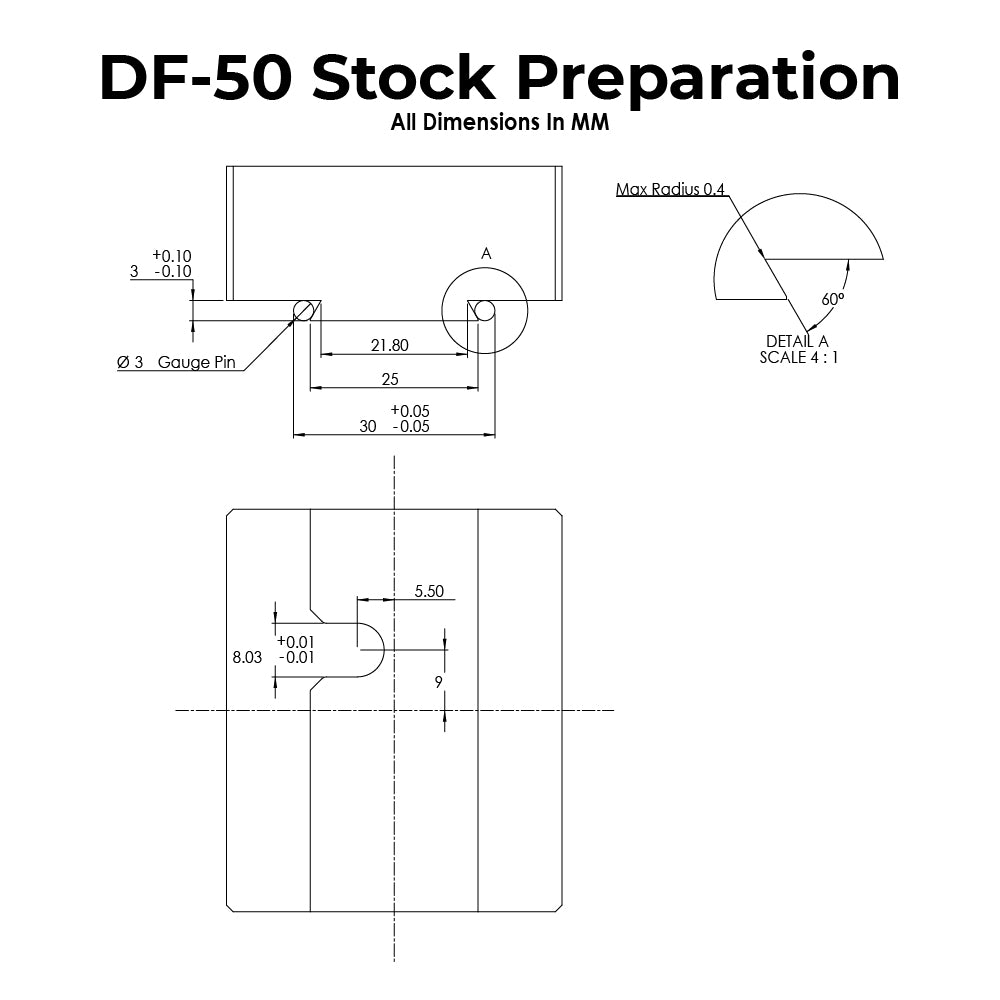

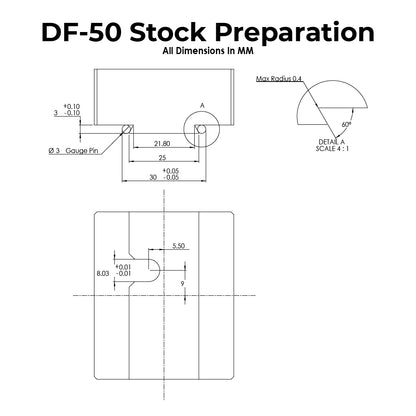

The Datum Workholding DF-50 Dovetail Fixture delivers rigid and reliable clamping for demanding 4th and 5th axis CNC machining. With a 3mm clamping edge and integrated stop pin, these dovetail fixtures provide a repeatable way clamping material while minimising material removal needed in secondary operations.
The protrusion-free outer profile of the Dovetail Fixture ensures ensures excellent part access to 5 faces and minimises tool clearance issues. The stainless steel construction ensures a long service life, offering substantially higher durability than aluminium alternatives.
Key Features:
• 60 degree dovetail (included angle)
• Stainless steel construction
• 3mm clamping depth
• Integrated stop pin
• No protrusions on body/consistent clearance
This product ships to over 50 countries, see Shipping Page for more info.
