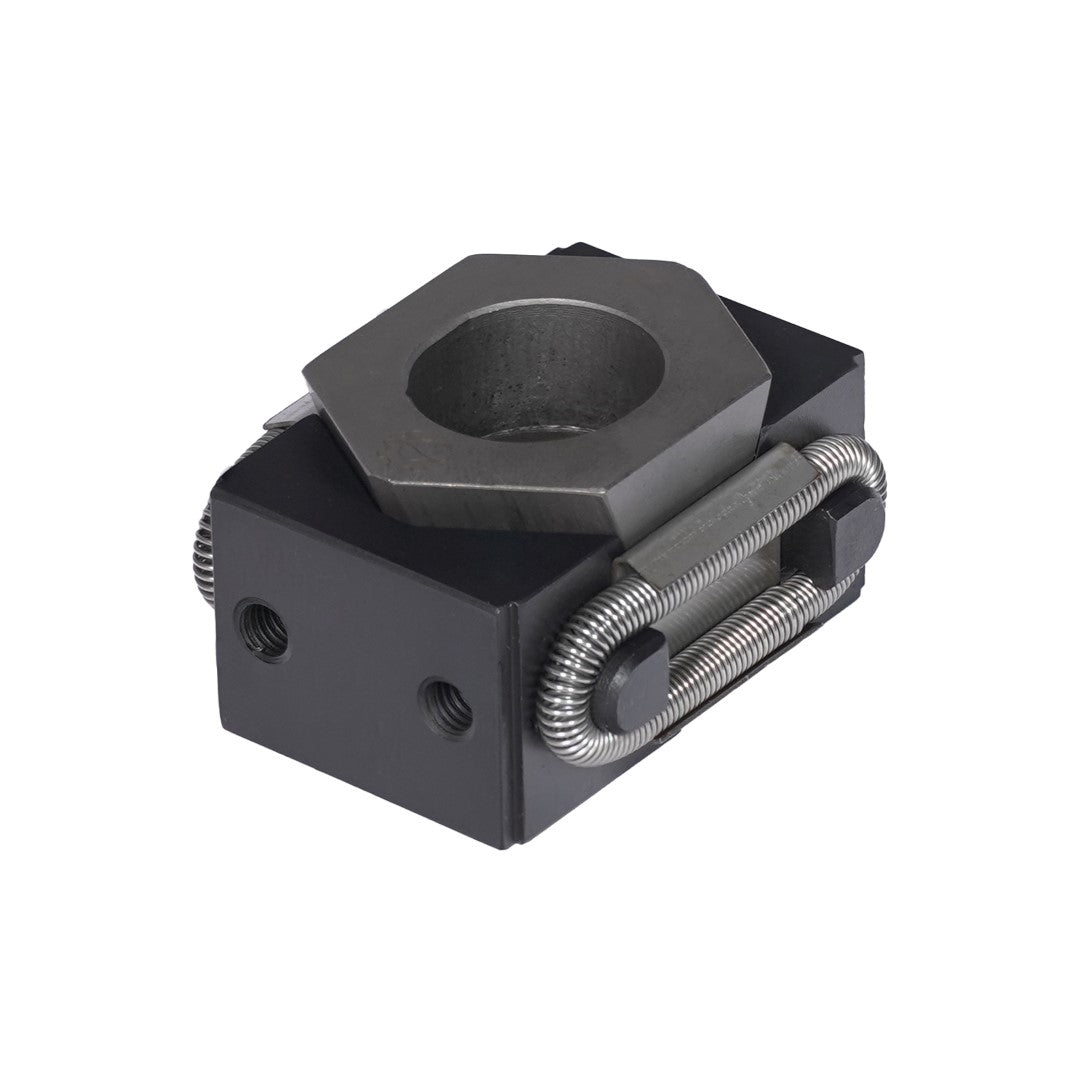

M12 Double Wedge Clamp
M12 Double Wedge Clamp
In stock
Couldn't load pickup availability
- Bi-directional expansion holds 2 workpieces with single clamping screw
- Slotted mounting hole lets the clamp body float slightly, absorbing small size variations in the parts or material
- Available in three sizes — M5, M8, M12 — to suit different clamping forces and fixture sizes
- M8 and M12 versions add two tapped holes on the clamp face for mounting custom jaws
The Double Wedge Clamp is a self-adjusting workholding clamp for CNC fixturing where the jaws spread outward, pressing evenly against each part when actuated from a single clamping screw. The slotted screw hole (counterbore) lets the clamp float slightly, taking up small dimensional differences — typically 1-2mm depending on clamp size — without needing to be repositioned.
Optimised for multi-part fixtures, the Double Wedge Clamp improves the speed of part changeover without sacrificing the stability of a standard machine vise. The clamp can also be used in a single-part configuration with an equally spaced backstop on the fixture side. M8 and M12 sizes feature two tapped mounting holes on each jaw face, letting you bolt on custom soft jaws for part-specific contours.
