SKU:CLMP-101
Low Profile Edge Clamp Set
Low Profile Edge Clamp Set
In stock
Couldn't load pickup availability

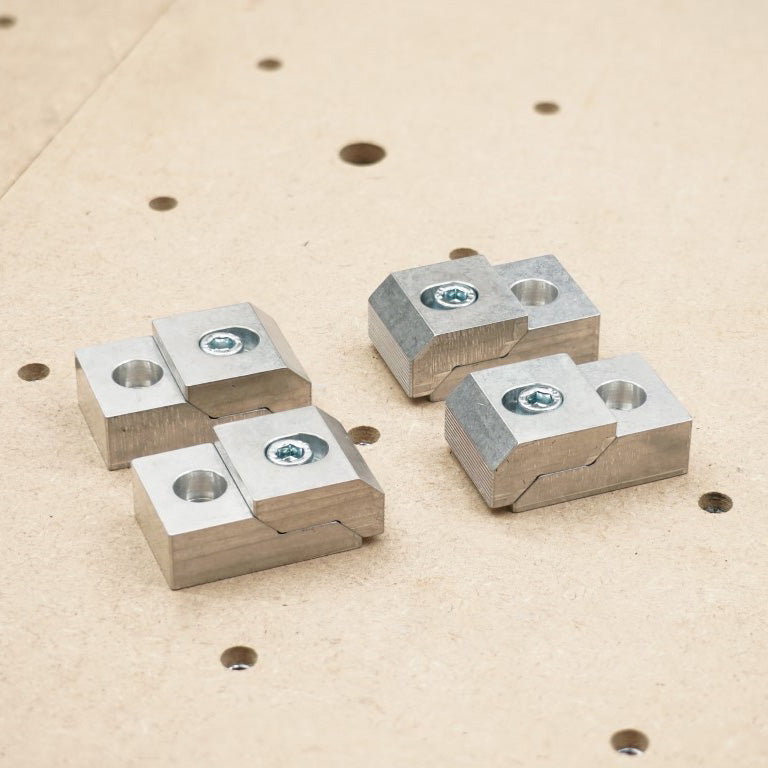

Clamp workpieces securely to your CNC router wasteboard with this set of 4 Low Profile Edge Clamps. Designed for horizontal edge clamping, each clamp applies simultaneous inward and downward force. This action pulls the workpiece tight against the wasteboard surface as it clamps, eliminating lift and minimising movement during cutting.
Fine serrations on the clamping face grip soft materials such as wood, MDF, and plastics without marking, giving extra holding security on materials that would otherwise slip under higher cutting loads.
The low profile design ensure these clamps stay clear of the top surface of your workpiece even on material as thin as 16mm (⅝") giving your CNC spindle unrestricted access for full-depth facing, surfacing, and pocket operations without clamp interference.
Pairs perfectly with the Adjustable Top Clamp Set for a complete, versatile CNC workholding system suitable for everything from small parts to large spoilboard-spanning panels.
Dimensions:
Width 28mm (1.1in)
Closed Length 47mm (1.85in)
Closed Height 18.5mm (0.72in)
Clamp Travel Range 3mm (0.118in)
This product ships to over 50 countries, see Shipping Page for more info.
Wasteboard Grid Mounting

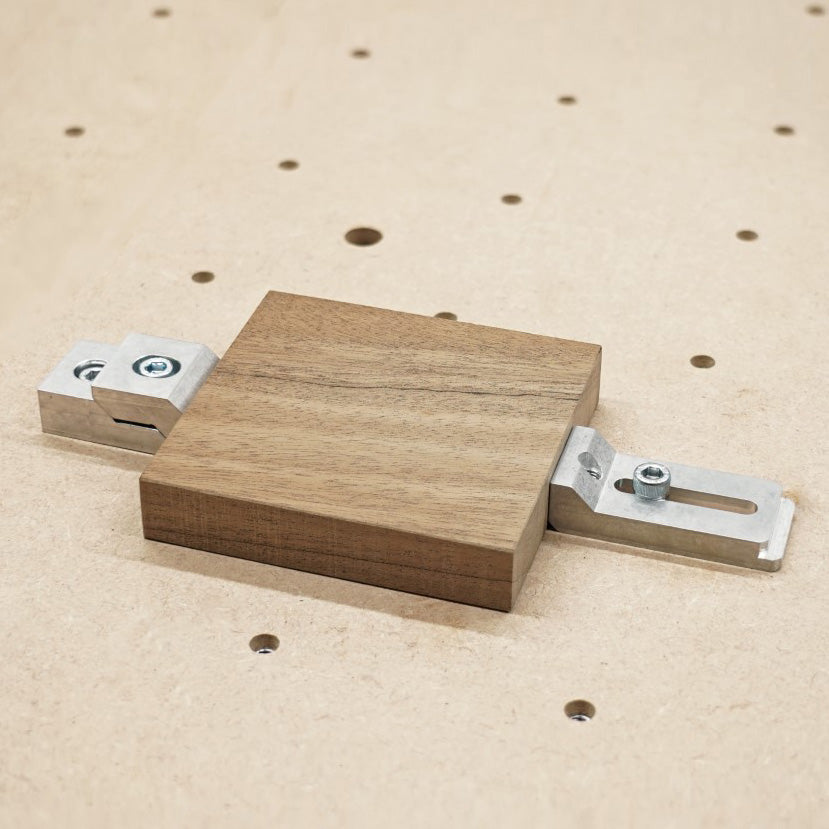

Mount directly into your CNC router wasteboard for a rigid and secure hold on parts of virtually any size. Use the Top Clamps as adjustable backstops alongside the Low Profile Edge Clamps for fast, repeatable setups, perfect for production batches or precision one-offs.
T-Track Mounting
Drop into any standard T-track extrusion for infinitely adjustable clamping positions. Slide along the track, position to your workpiece, and lock down in seconds — no drilling or secondary fixturing required.
-
No Support Screw: Clamping Range 6 - 18mm (1/4” - 3/4”)
-
Support Screw 1: Clamping Range 15-40mm (5/8” - 1.5”)
-
Support Screw 2: Clamping Range 25-60mm (1” - 2.5”)
